Wing Nut Coupling

It can be widely used in various application. This application be connected under pressure and less spillage or non-spillage.
This series can be suitable used in connecting equipment of the hydraulic lines like power tongs, swivels, and mobile drillings. It also widely used dump tracks, and dump trailer to connect with to wet line hydraulic system. And it also suitable used in submersible pumps, engine test stands, and the equipment require connect under high pressure or high liquid transfer.

Heavy-dust wing nut is ruggedly built specifically to withstand the hammer blows commonly used to tighten and loosen thin coupler.
Assembled valve seal can permits full pressure connect and disconnect, without seal washout.
The flush face valve keeps air inclusion and spillage to a minimum.
Corrosion resistant brass coupling makes it compatible with a widely range and provides widely functionality.
Compatible with PARKER 6100 series, FASTER FB series, AEROQUIP 5100 series, HANSEN 96 series.

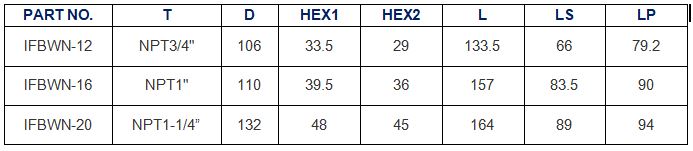

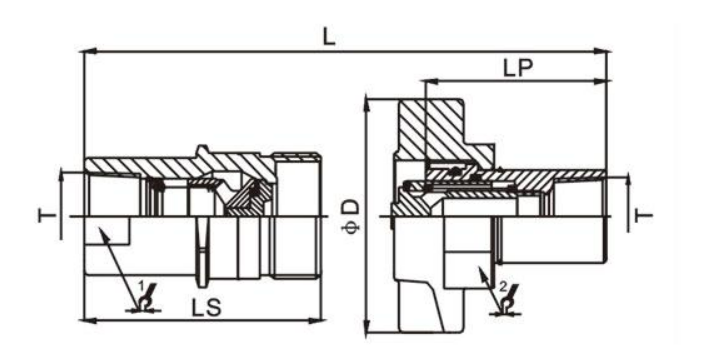

L = Length while quick coupling is connected.
