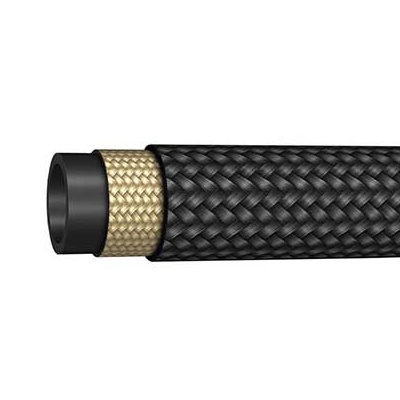

Construction
| Core | Black colour, Synthetic rubber resistant to oil and water |
| Reinforcement | Single steel wire braid |
| Cover | Black Colour, single braid of textile fiber |
| Application | Medium Pressure Hydraulic Lines 25 to 210 bar for use with fluids in Hydraulic systems can also be used in air and water. Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems |
Note:
Use Item Code PH141 for rubber cover; 2″, 2-1/2″, 3″ are not covered under SAE 100R5
Temperature Range:
Continuous: -40°C to +100°C for air application temp should be max +80°C and for water +90°C
